Registry Settings and Group Policy Object (GPO) template

The registry and GPO settings described below assist in configuring and troubleshooting the product.

USB over Network Server includes *.admx and *.adml administrative template files. These template files allow to configure the product via Local GPO and/or Domain-Based GPO. Please refer to Microsoft MSDN article on managing ADMX files.

GPO template

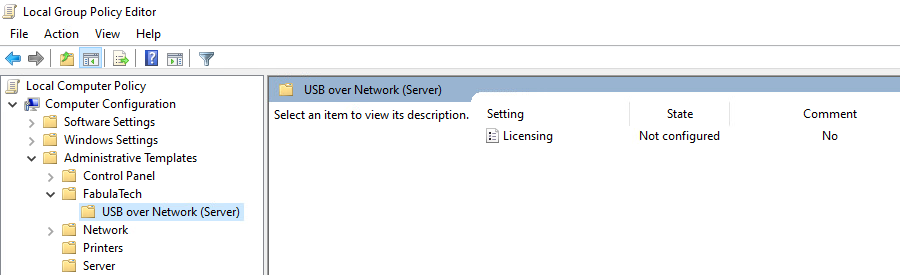

GPO Editor

The archive file containing administrative template can be found in the installation directory:

%ProgramFiles%\FabulaTech\USB over Network (Server)\policies.zip

Additionally, the administrative template files are deployed to a local GPO during product installation and can be found here:

%WINDIR%\PolicyDefinitions\Fabulatech.admx
%WINDIR%\PolicyDefinitions\ftusbnetsrv.admx
%WINDIR%\PolicyDefinitions\en-US\Fabulatech.adml
%WINDIR%\PolicyDefinitions\en-US\ftusbnetsrv.adml

The GPO template can be used to configure the following settings:

Setting Description
LicensingLicensing management.

It's recommended to use the GPO template files provided with the latest product version of USB over Network Server.

Registry Settings

HKLM\Software(\Wow6432Node)\FabulaTech\USB over Network (Server)
Value name Type Range Default If none * Description
LogLevel REG_DWORD 0-3 0 0 USB over Network Server logging level:
0 - Error
1 - Warning
2 - Info
3 - Debug.
